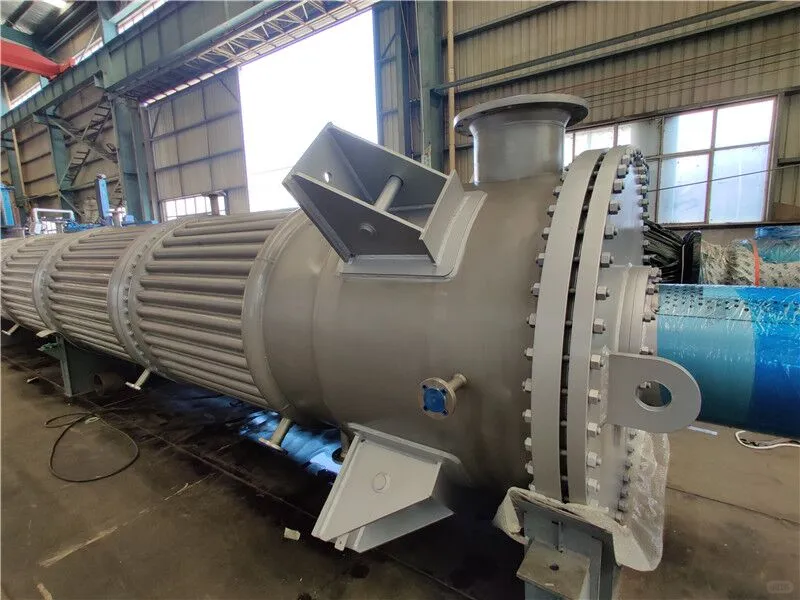

JBT4756-2006镍及镍合金制压力容器
Inconel系列：718、600、601、625、X—750
•Incoloy系列：825、8020、8028、925、926
•Hastelloy系列：C-276、C-22、C-2000、C-4、GH536、B-2、B-3
•高温合金系列：2132、3030、3039、3044、3128、80A
• Monel系列：400、K500
镍制容器制造要注意什么
焊接前准备
表面处理：彻底清除焊件及坡口表面氧化膜（镍氧化膜熔点高达2090℃，需打磨至金属光泽），避免焊接时因氧化膜未熔化导致夹渣
清洁要求：丙酮/酒精擦拭油脂、灰尘等污染物，喷砂面需去除10mm范围内氧化膜后再焊接
坡口加工：采用机加工或等离子切割，确保坡口平整光滑，避免裂纹、分层等缺陷
焊接过程控制
焊接方法：优先选用钨极氩弧焊（Ar/He混合气），控制线能量和层间温度防止合金元素烧损
焊根处理：因材料冷加工性能差，可采用不清焊根的打底焊道工艺
应力控制：避免焊缝及母材表面应力集中，降低拉伸应力分布不均导致的变形风险
JBT4756-2006 Nickel and Nickel Alloy Pressure Vessels
Inconel series: 718, 600, 601, 625 X—750
Incoloy series: 825, 8020, 8028, 925, 926
Hastelloy series: C-276, C-22, C-2000, C-4, GH536, B-2, B-3
High temperature alloy series: 2132, 3030, 3039, 3044, 3128, 80A
Monel series: 400 K500
What to pay attention to when manufacturing nickel containers
Preparation before welding
Surface treatment: Thoroughly remove the oxide film on the surface of the weldment and groove (nickel oxide film has a melting point of up to 2090 ℃ and needs to be polished to a metallic luster), to avoid slag inclusion caused by unmelted oxide film during welding
Cleaning r
Welding method: tungsten inert gas welding (Ar/He mixed gas) is preferred, and the line energy and interlayer temperature are controlled to prevent alloy element burnout
Root welding treatment: Due to the poor cold processing performance of the material, a bottom weld bead process with unclear root welding can be used
Stress control: Avoid stress concentration on the surface of the weld and base metal, and reduce the risk of deformation caused by uneven distribution of tensile stress#镍合金容器
