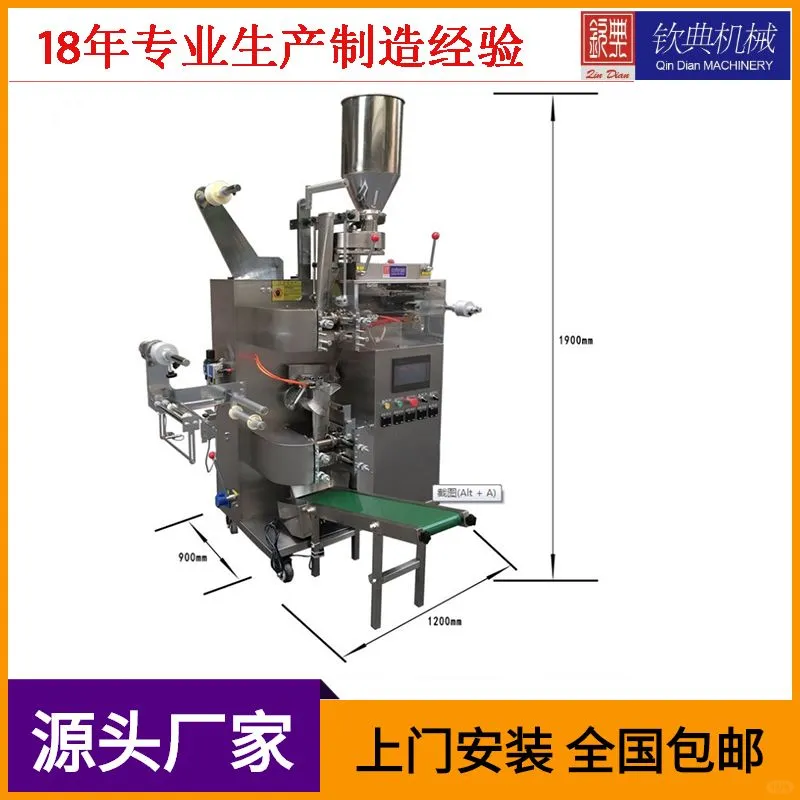

QD-19高速袋泡茶茶叶包装机
QD-19型包装机是一种新型热封式、多功能、全自动袋泡饮品包装设备。该机改进了外袋包装方式，进一步提高了设备对外袋包装材料的适应性和袋形的美观性，传动系统采用变频控制，外袋采用间歇板式热封，自动装盒。能分档自动装盒，能实现纸/塑，塑/塑，塑/铝/塑，纸/铝/塑等多种可热封复合膜的精美包。
01.生产能力：100包±5/分
02.包装容量：8-10立方厘米
03.内袋尺寸：62.5mm×50mm
04.外袋尺寸：82mm×75mm
05.标签尺寸：28mm×24mm
06.线 长：210 mm
07.电 源：AV380, AV 380V/220V 总功率：2.36KW
08.整机重量： 1210KG
09.整机外形尺寸：1.688m×1.33×2.205m
10. 包装箱外形尺寸：1.84m×1.29m×1.89m

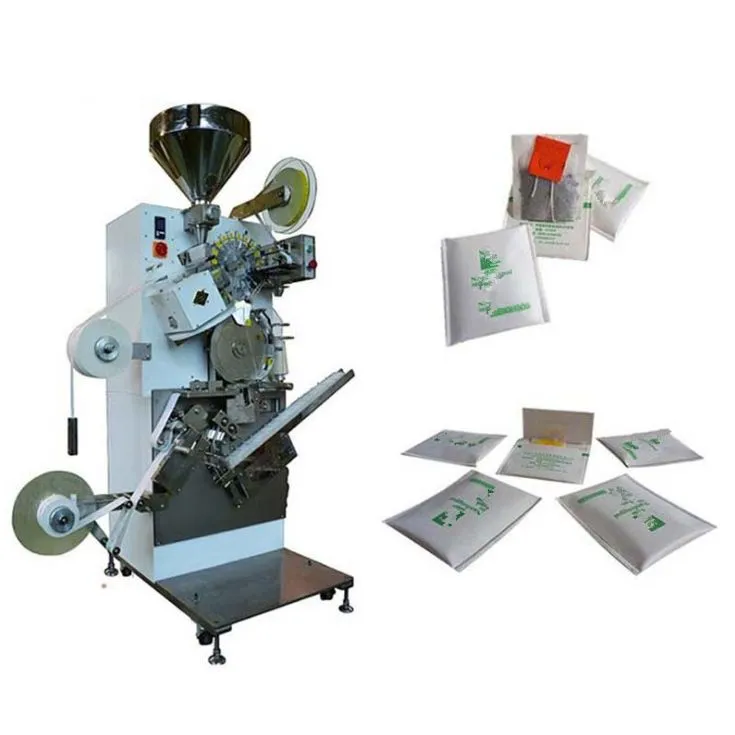

Tea bag packing machine Model QD-19 is our newest model, and features filling, heat sealing, threading, labeling and over-wrapping functions. Adopting sealing pads in place of the sealing rollers used in machines of previous generations, this new system greatly improves the machine\'s flexibility and enables use of different packaging materials. Main materials include paper/PE, plastic/foil/PE and plastic/PE.
Technical data:
1) Output: 100±5bags/minute
2) Max. dosage: 8-10cm3
3) Bag dimensions: 62.5 x 50mm
4) Envelope dimensions: 82 x 75mm
5) Tag dimensions: 28 x 24mm
6) Thread length: 210mm
7) Power supply: #高速袋泡茶包装机 #钦典高速茶叶包装机
QD-19型包装机是一种新型热封式、多功能、全自动袋泡饮品包装设备。该机改进了外袋包装方式，进一步提高了设备对外袋包装材料的适应性和袋形的美观性，传动系统采用变频控制，外袋采用间歇板式热封，自动装盒。能分档自动装盒，能实现纸/塑，塑/塑，塑/铝/塑，纸/铝/塑等多种可热封复合膜的精美包。
01.生产能力：100包±5/分
02.包装容量：8-10立方厘米
03.内袋尺寸：62.5mm×50mm
04.外袋尺寸：82mm×75mm
05.标签尺寸：28mm×24mm
06.线 长：210 mm
07.电 源：AV380, AV 380V/220V 总功率：2.36KW
08.整机重量： 1210KG
09.整机外形尺寸：1.688m×1.33×2.205m
10. 包装箱外形尺寸：1.84m×1.29m×1.89m
Tea bag packing machine Model QD-19 is our newest model, and features filling, heat sealing, threading, labeling and over-wrapping functions. Adopting sealing pads in place of the sealing rollers used in machines of previous generations, this new system greatly improves the machine\'s flexibility and enables use of different packaging materials. Main materials include paper/PE, plastic/foil/PE and plastic/PE.
Technical data:
1) Output: 100±5bags/minute
2) Max. dosage: 8-10cm3
3) Bag dimensions: 62.5 x 50mm
4) Envelope dimensions: 82 x 75mm
5) Tag dimensions: 28 x 24mm
6) Thread length: 210mm
7) Power supply: #高速袋泡茶包装机 #钦典高速茶叶包装机
