青岛食博会-推荐展商 | 青岛富凯佳自动化设备有限公司

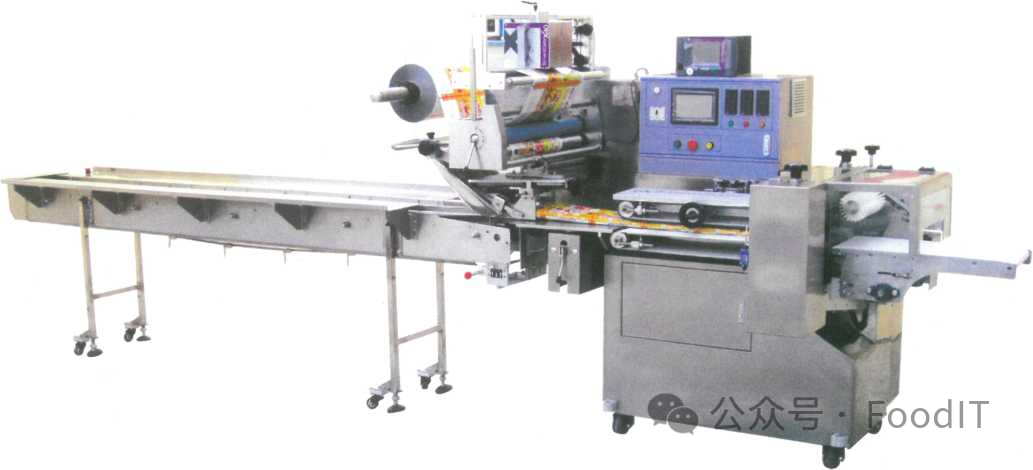

FKJ不锈钢系列包装机

桶装、碗装方便面、桶装米线、杯装奶茶、杯装果奶、挂面、馍片、牙膏、电池、饮乐多、一次性消毒餐具、化妆品、蚊香、连杯酸奶等外层热收缩的包装。

Bottled, bottled rice noodles, instant noodles in bowl, cup of tea, cups, noodle, fruit milk, toothpaste, cell membrane, music drink more, one-time disinfection tableware, cosmetics, mosquito coils, even a cup of yogurt and other outer heat shrink packaging.

■性能特点 specially performance

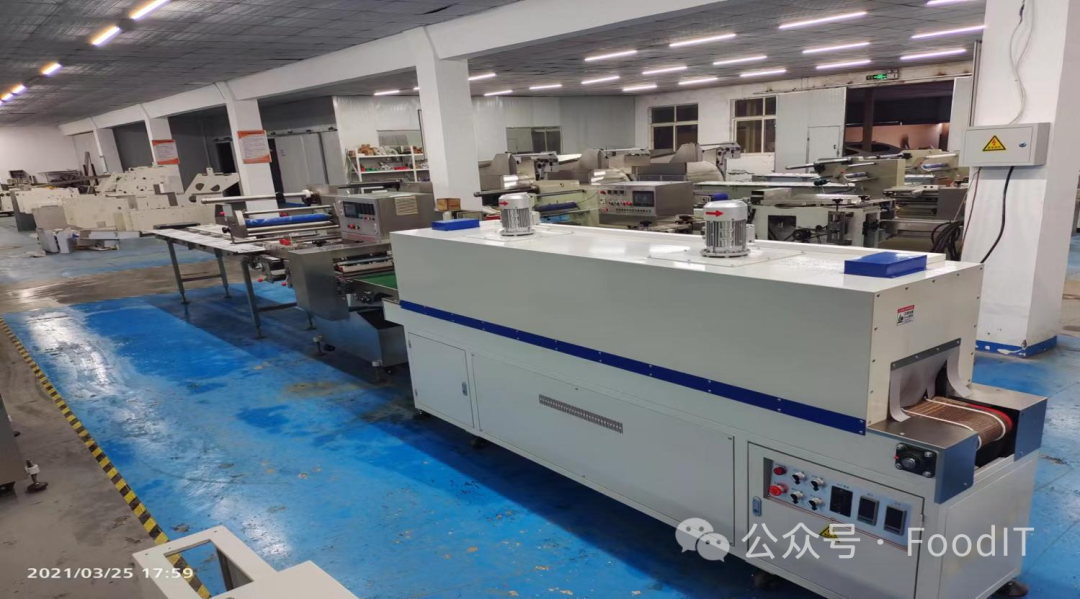

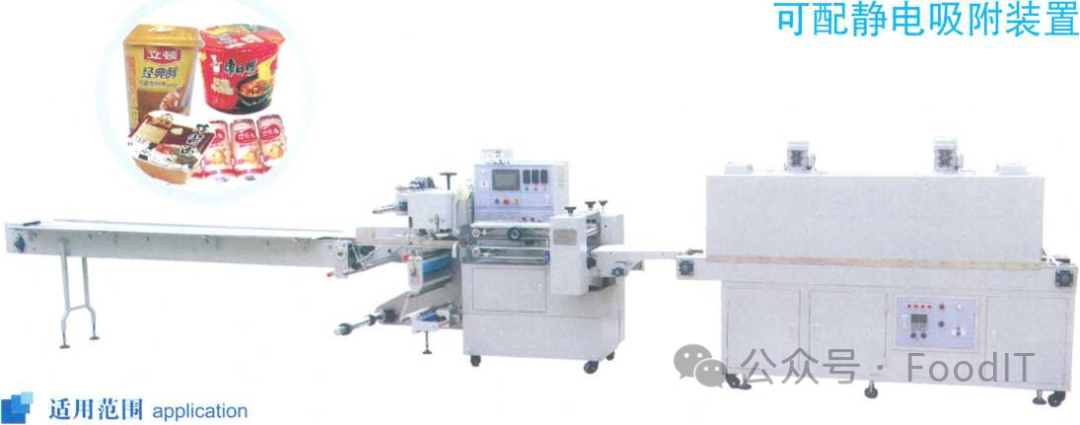

◊ FKJB收缩膜包装机匹配UNT型热收缩炉成为热收缩产品生产线，其纵封、横封封口呈线装。

◊ FKJAB shrink film packaging machine matching the UNT thermal shrinkage oven as heat shrinkable products production line, the longitudinal sealing, horizontal sealed in line.

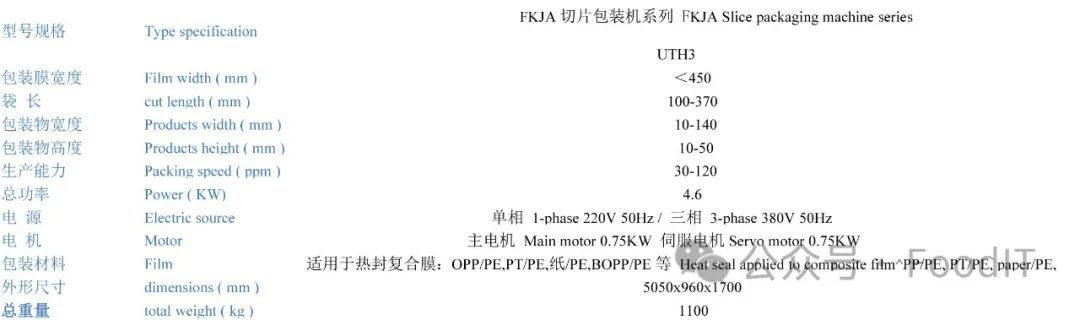

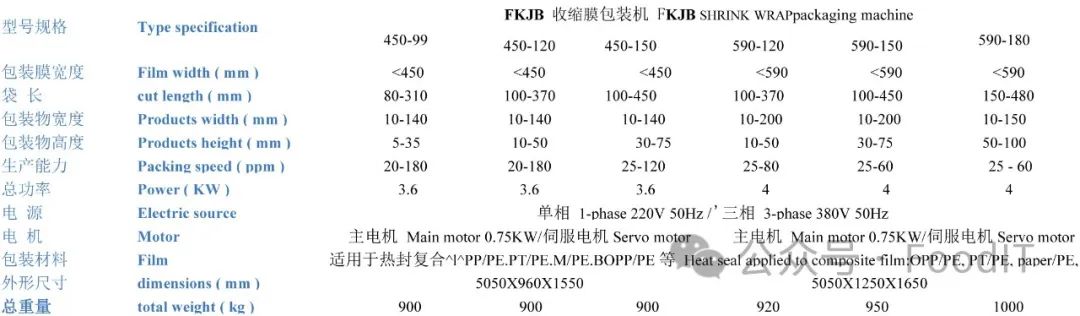

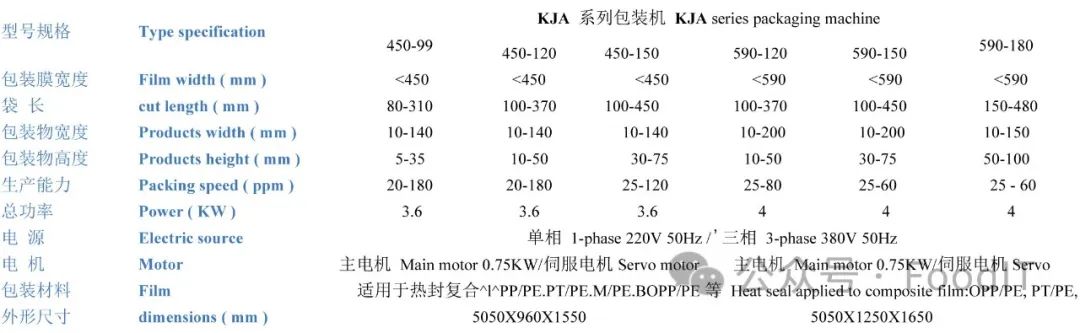

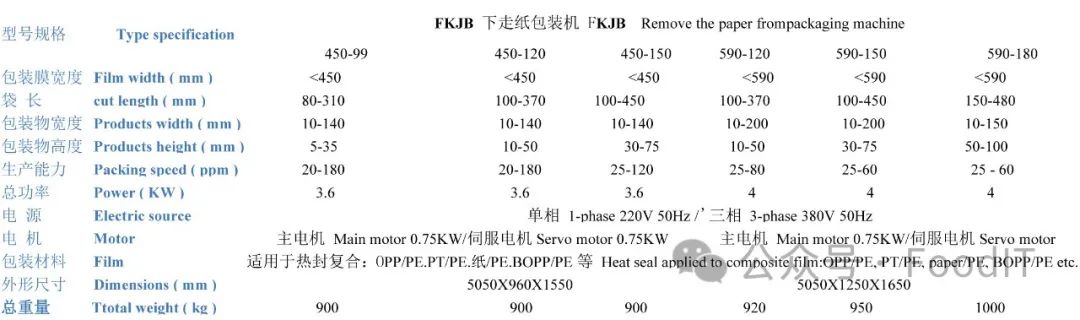

技术参数 specifications

适用范围application

食品、医药、日用品、五金、化工等行业的固形物包装。

Package of solids such as food, medicine, commodity, hardware, and chemical product etc.

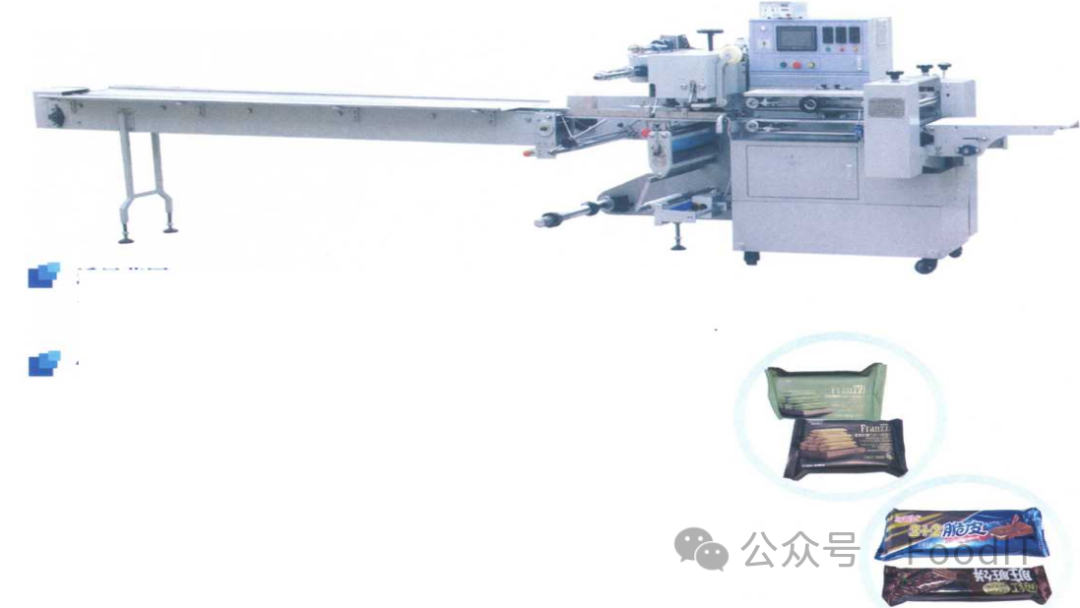

性能特点 specially performance

◊知名品牌PLC控制，性能稳定可靠；

◊采用大尺寸彩色触摸屏，操作直观、简单；

◊采用伺服驱动，切断准确，维护保养方便；

◊进口色标光电开关，双向追踪，包装产品美观；

◊具有定位停车功能，有效防止烫膜；

◊采用智能温控仪，PID调节，封口温度准确、稳定；

◊横封装有防切防护罩、防错位装置，使用无忧；

◊直热式纵封，提高了使用寿命、减少停机烫膜，大幅度降低了废品率。

◊ Controlled by fomous band PLC, stable and reliable;

◊ Larger colour HMI, easy to operate;

◊ Drived by servo motorjilm cut accurately, easy to maintain;◊ Import color code photoelectric switch, two-way trace, slinky package;

◊ Circle stop, prevent film over-heat;

◊ Intelligent TC adopt, PID control, seal temperature accurate and stable;

◊ Transverse seal takes cut-against safety cover and misplace-against device, feel at ease to use ;

◊ Direct heat longitudinal seal, improve service life,reduce stop film over-heat so as to reduce the reject rate substantially.

■适用范围application

速冻水饺、汤圆、丸子、馄饨、南瓜饼、春饼、面包、吐司等大型系列包装物的包装。

Frozen dumplings, glutinous rice balls, dumplings, wonton, pumpkin pie, fajitas, bread, toast and other large series of packaging material packaging.

■性能特点 specially performance

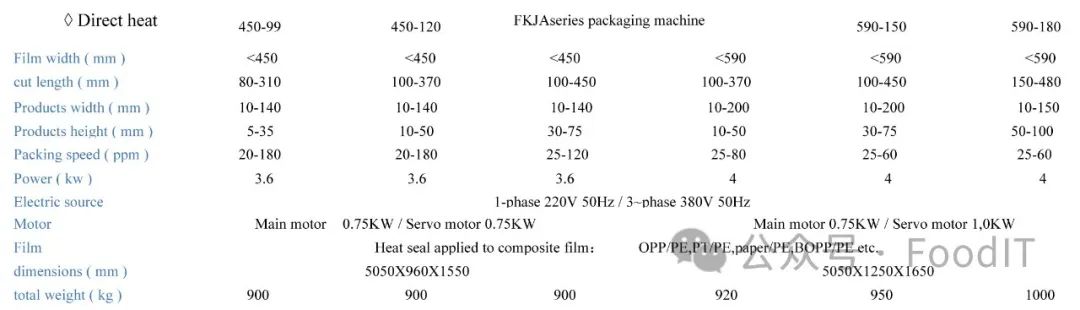

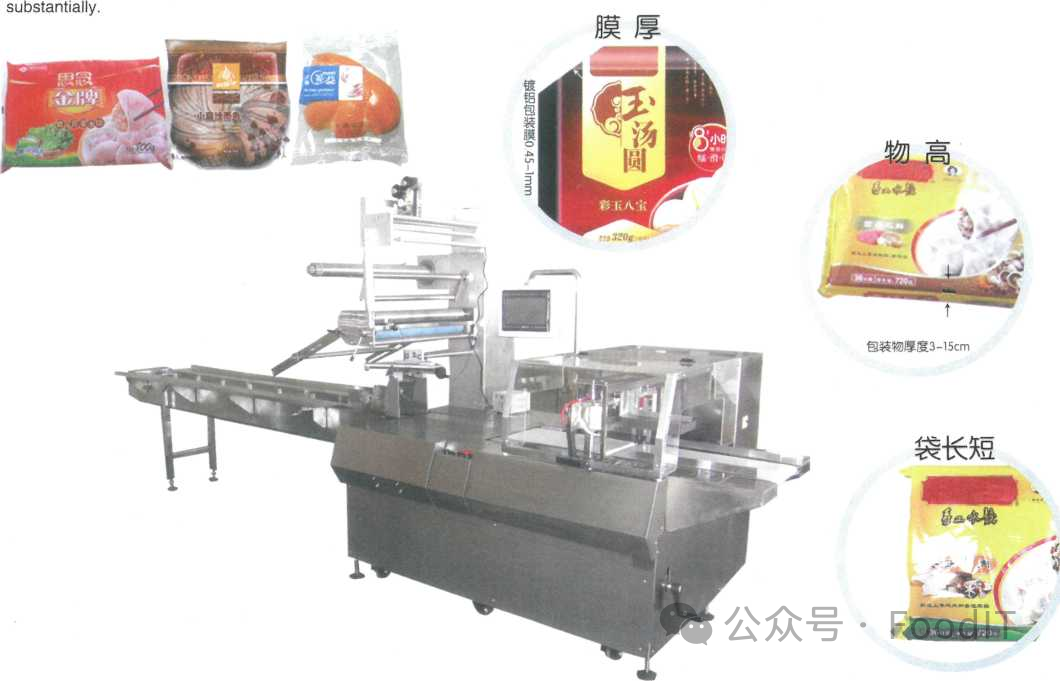

FKJA包装机是我公司专为高档产品的包装研发的一款往复式动作包装机。采用多伺服驱动来完成整机的连贯动作。针对膜厚、物高、 带长短而设计。往复式包装机的强大功能深受广大用户的好评。

◊整机使用PLC编程控制器控制，性能稳定；

◊大型彩色触摸屏，数据自动记忆调取、确认切点、自动计数、参数设定、局部动作、无料停机、空包剔除；

◊光电检测及双向追踪，有效消除包装误差(±1mm),避免物料浪费；

◊釆用PID式自动控制温控仪，控温精度高(±1P );

◊直热式纵封加热，能在低温状态下封合薄膜、提高了使用寿命、减少停机烫膜，大幅度降低了废品率。

KFJA is a box motion packer specially for high-end products, multiple servo driver.aimed at thick film, high good, and short belt, praise by the majority of users.

◊ Controled by PLC, stable performance ；

◊ Large color HMI,automatic data memory access,comfirm cutting point,automantic, counting,parameter；setting.components action,no- material stop .empty bag reject；

◊ photoelectric switch and two-way trace,effectively eliminate packing error ( ± 1mm ) ,avoid waste ；

◊ PID TC adopt,high precision ( ±1℃)；

◊ Direct heat longitudinal seal.can seal in low temperature,improve service life,reduce stop film over-heat so as to reduce the reject rate

■适用范围application

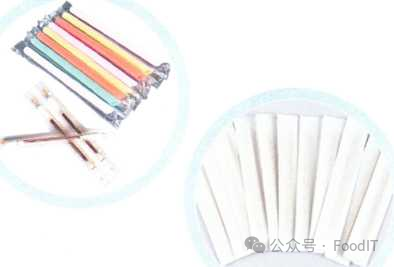

单只牙签，吸管，医用棉棒，注塑牙签等

single toothpick, straw, medical cotton rod, injection toothpick

■性能特点 specially performance

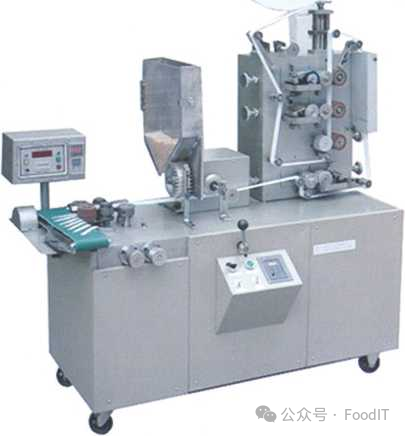

牙签包装机是一种可包装各种材质的多功能机型。具备双面二色印刷、自动加胶、计数、 烘干、智能恒温控制系统等功能，可包单头尖或双头尖牙签，吸管，医用棉棒，注塑牙签等。每个袋可装一条或二条，三边压花封口。不仅可以包装纸类材料，而且此创新机型还可以包 装各种薄膜材料、淋膜纸等复合材料。速度快，运行平稳。

Mainly used in: single toothpick, straw, medical cotton rod, injection toothpick Toothpick packaging machine is a kind of multi-functional packaging machine. It has the functions of double-sided color printing, automatic gluing, counting, drying, intelligent thermostatic control system and so on.Each bag can contain one or two, three 一 sided embossed seal. It can not only be used as wrapping paper, but also can be used to package various film materials, coated paper and other composite materials. Fast, smooth running.

■技术参数 specifications

◊卷纸宽度(Paper roll width): 27-30(MM)◊用纸克数(paper grams)：28-80(g/m2)

◊用纸类别(Types of paper)：打字纸，书写纸，烟纸,淋膜纸,各种薄膜材料 typing paper, writing paper, cigarette paper, coated paper, various thin film materials

◊可调速度(Adjustable speed ): 500-1000(包/分)/ (parcel/min)

◊配用电机(Motor)：0.55(kw)◊重量(Weight)：320(kg)◊体积(Volume)：1.4x0.8x 1.6(M)

■性能特点 specially performance

3、 热封器四路加热控制，双侧各封道可单独调温；热平 衡良好，保证封口质量，适用于多种包装材料;同时升 温速度快，缩短加热时间。

4、 智能型光电色标定位控制系统;可视性良好的侧开式防 护挡板，操作安全。

5、 下料系统采用旋转式12工位20MM不锈钢转盘、人工 投料、自动机械开闭式下料、人性化设计、投料方便 且不卡料、方便多种异性牙线牙签或类似塑料制品、 玩具等，美观实用。

6、 Y紊列彙用机诚式羸转式切刀，包装速度快，可在机 器运行中随意调整切刀位置;在实际操作中实际速度最 快可达95包每分钟，依据客人反应结果单个人操作速 度可达72包/分钟。该设备速度为55—100包/分钟可调节。

7、 特设定位停机功能，确保在任何状态停机时热封器及 切刀处于张开位置，避免烫伤包装材料及热封机构。

1.Bag-making system adopts step motor subdivision technology, with high precision and error less than 1 mm;

2.The controller adopts liquid crystal Chinese character display; Intuitive and convenient, easy to operate at a glance, convenient bag length adjustment, counting, automatic alarm without paper.

3.Four-way heating control of the thermoseater, and each seal can adjust the temperature separately; Good thermal balance, ensure sealing quality, applicable to a variety of packaging materials; At the same time, the heating speed is fast and the heating time is shortened.

4.Intelligent photoelectric color calibration control system; Good visibility side open protective baffle, safe operation.

5.The feeding system adopts rotary 12-station 20mm stainless steel turntable, manual feeding, automatic mechanical opening and closed feeding, humanized design, convenient and non-stuck feeding, convenient for a variety of heterosexual dental floss or plastic products, toys, etc., beautiful and practical.

6.Z series adopts mechanical rotary cutter, with fast packing speed, and the position of cutter can be adjusted at will during the operation of the machine. In the actual operation, the actual speed can be up to 95 packages per minute, and the individual operation speed can be up to 72 packages/minute according to the customer response results. The device has an adjustable speed of 55 to 100 packets per minute.

7.Special positioning and stopping function is provided to ensure that the heat sealing device and cutting knife are in the open position when the machine is stopped in any state to avoid burning packaging materials and heat sealing mechanism. Ii.Performance parameters:

■技术参数 specifications

型号(model) : KJL-80Y

包装速度(Packing speed ) : 55-100 (包/分)/ ( parcel/min )

计量范围(Measuring range ):单支包装(Single packing ) 制袋尺寸(Bag size ) : It is50 〜115mm by30 ~ 85mm

电源电压(The power supply voltage )：三相山线制380V/50Hz或220V任选其一 The three-phase four-wire system is either 380V/50Hz or 220V

功率(Power) : 1.64kw

重量(Weight) : 230kg

外形尺寸(Overall dimensions ) : 695*770*1580mm

包装材料(Packaging materials ):各种复合膜包装材料或纸塑膜 Various composite film packaging materials or paper plastic film

包装材料直径(Packing material diameter) : w300 mm.
