主要性能指标

(1）技术指标和标记工作电压:AC 220V 50Hz

(2）工作频率:915MHz±10%

(3）输出功率:0～100w  连续可调

(4）工作方式:连续、间歇和脚踏控制。间歇比值为3:2，功率输出3s，停止2s

(5）工作时间:1~30 min  任意设定

(6）肿瘤边缘组织温度测量范围:15℃~90℃

(7）肿瘤边缘组织温度控制范围:15℃~60℃

(8）针杆控制温度:45℃

(9）匹配负载:50Ω

(10）微波泄露:机壳微波泄漏<5mw/cm2，无用微波泄漏<5mw/cm2

(11）工作环境要求:温度5℃～40℃; 相对湿度不大于85%; 大气压力700hpa-1060hpa

(12）熔断器:F3AL250V

(13）仪器耗电量:不大于600VA

说明书

NEUWAVE™ Microwave Ablation System

https://www.jnjmedtech.com/sites/default/files/user_uploaded_assets/pdf_assets/2020-07/PL-000353-D,%20User%20Manual,%20Certus%20140,%20V3.0.X%20SW,%20English.pdf?_gl=1*1wyzcl6*_gcl_au*MTMwODg2NzAyOC4xNjg3OTIwODIw

References

* Refer to IFU for Ablation Zone Sizes

1. Laeseke et al. Multiple-Antenna Microwave Ablation: Spatially Distributing Power Improves Thermal Profiles and Reduces Invasiveness. Journal of Interventional Oncology. 2009; 2(2):105-112. C. M. Harari, et al, Microwave Ablation: Comparison of Simultaneous and Sequential Activation of Multiple Antennas in Liver Model Systems. Radiology. 2015 Jul 2:142151.

2. Reich, D, et al. Liver Resection After Thermal Ablation of Parenchymal Transection Margin Using Microwave Energy. Clinical Liver Disease, Vol 5, No 2, February 2015

3. Millenium Interventional Oncology, Market Analysis 2016. Ethicon, Inc.

4. E. Knavel, et al. Tumor Ablation: Common Modalities and General Practices. Techniques in Vascular and Interventional Radiology 2013. NEUWAVE ex-vivo data available in probe instructions for use. D. Lu, et al. Influence of Large Peritumoral Vessels on Outcome of Radiofrequency Ablation of Liver Tumors. JVIR 2003. T. Ziemlewicz, et al. Percutaneous Microwave Ablation of Hepatocellular Carcinoma with a Gas-Cooled System: Initial Clinical Results with 107 Tumors. JVIR 2015. J.L. Hinshaw, et al. Percutaneous Tumor Ablation Tools: Microwave, Radiofrequency or Cryoablation - What Should You Use and Why? RadioGraphics 2014; 35:1344-1362.

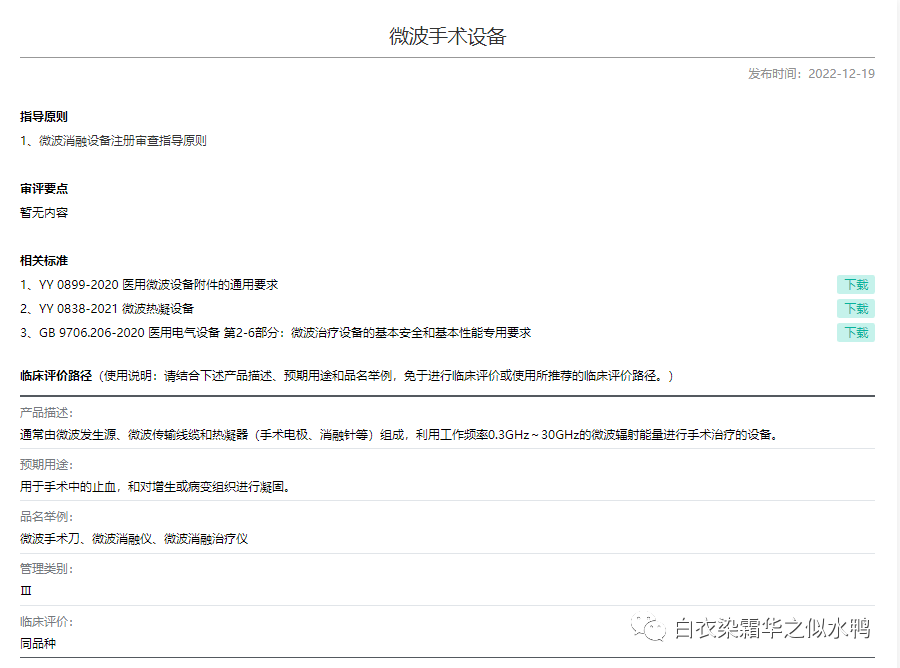

https://www.cmde.org.cn/flfg/zdyz/flmlbzh/flmlylqx/20221219144200169.html
